Stability

Superior Performance

WAM-V 8 provides best in class stability where it counts. Head out with the confidence you need to get the job done.


Portability

Simplified Logistics

WAM-V 8 has best in class portability. Disassemble and pack into shipping cases that can be checked on most US domestic airline carriers. WAM-V 8 is the most portable autonomous surface vessel (ASV) on the market.



Versatility

Super Shallow Draft

WAM-V 8 can operate in as little as 6 inches of water. Have the confidence to go into shallow water environments without damaging the hulls or propulsion system.


Maneuverability

Better On Track Performance

The WAM-V 8 ASV, like all WAM-Vs, can turn 360 degrees within its own length. The result is better path following and greater maneuverability in congested areas.


WAM-V 8 ASV SPECIFICATIONS

Length: 8 ft (2.5 m)

Adjustable Beam: 4 ft (1.2 m) or 5 ft (1.5 m)

Max Draft: 4 in (10 cm)

Weight: 100 lbs (45 kg) lightship

Batteries: NiMh or Li-ion

Endurance: Up to 10 hrs @ 2.5 kn

Max Speed: Up to 6 kn

Propulsion: 2 x 1kW electric

Payload: 100 lbs (45 kg)


WAM-V 8 ASV COMMAND AND CONTROL

Screenshot of OCU Display.JPG

Control and communication software: MARCODE™

Graphical User Interface (GUI) for:
• Autonomous waypoint navigation
• Manual control
• Real-time vessel & sensor data display

FrSky_Taranis_X_Lite_White Background.jpg

Mobile Operator Control Unit (MOCU™)

• Handheld, mobile, steering and speed controller.
• Allows control of WAM-V Unmanned Surface Vehicle (USV) independent of command station.
• Serves as an emergency back-up when used with command station.


Remotely Operated Command Station (ROCS™)

Portable, self-contained, remote operation command station. Includes:
• PCS
• Integrated handheld wireless controller
• RF module
• Batteries


Propulsion Control Unit (PCU)

• Two channel interface to propulsion
• Battery back up reset
• RS232 interface.


Integrated Onboard Control System: ROBO-HELM™

Computer navigation and control system containing:
• GPS and INS
• Digital navigation
• Real-time vessel and sensor data
• RF module

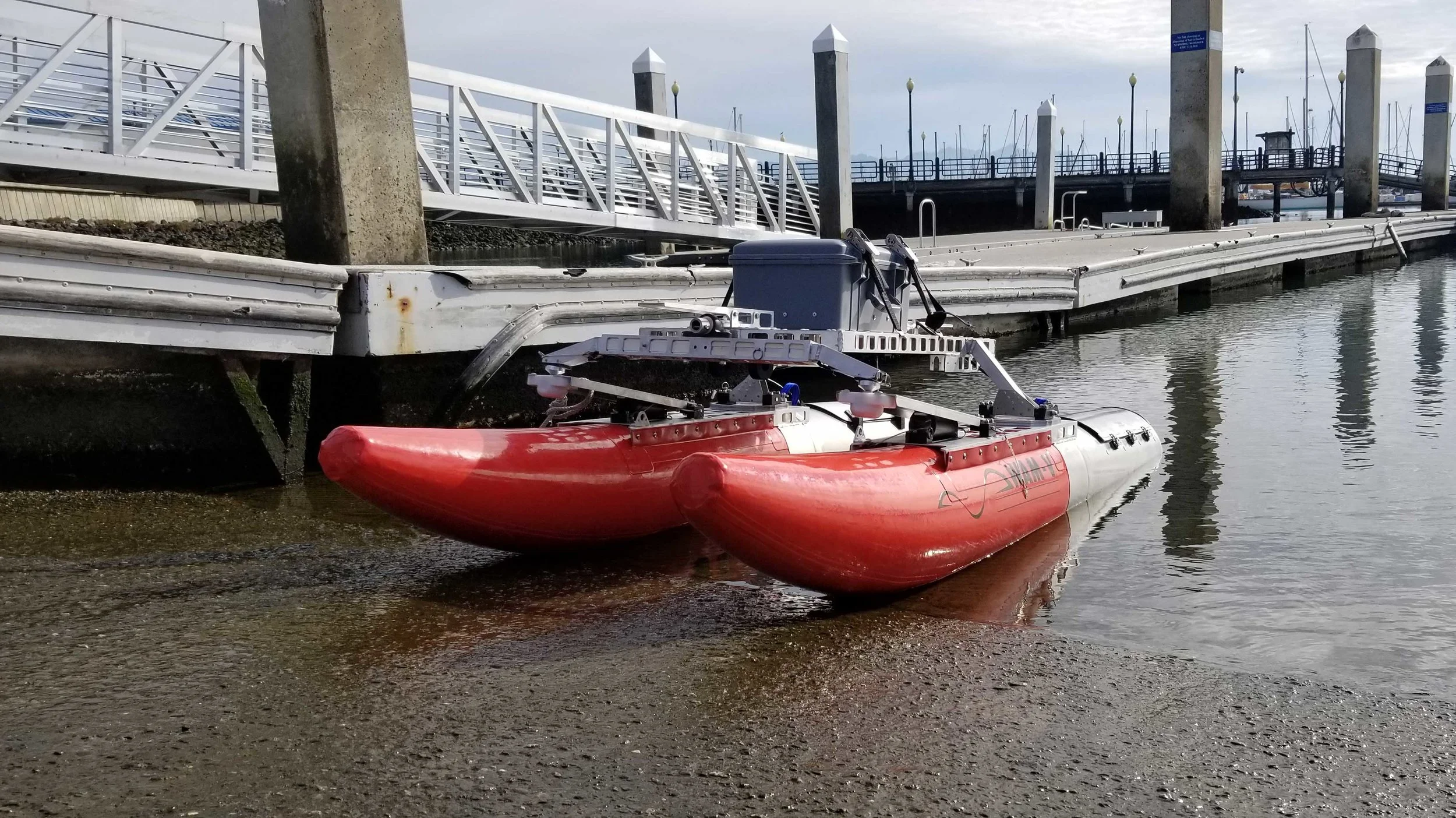

WAM-V 8 ASV Gallery
