WAM-V 33 USV

WAM-V 33 USV_1.jpg

About

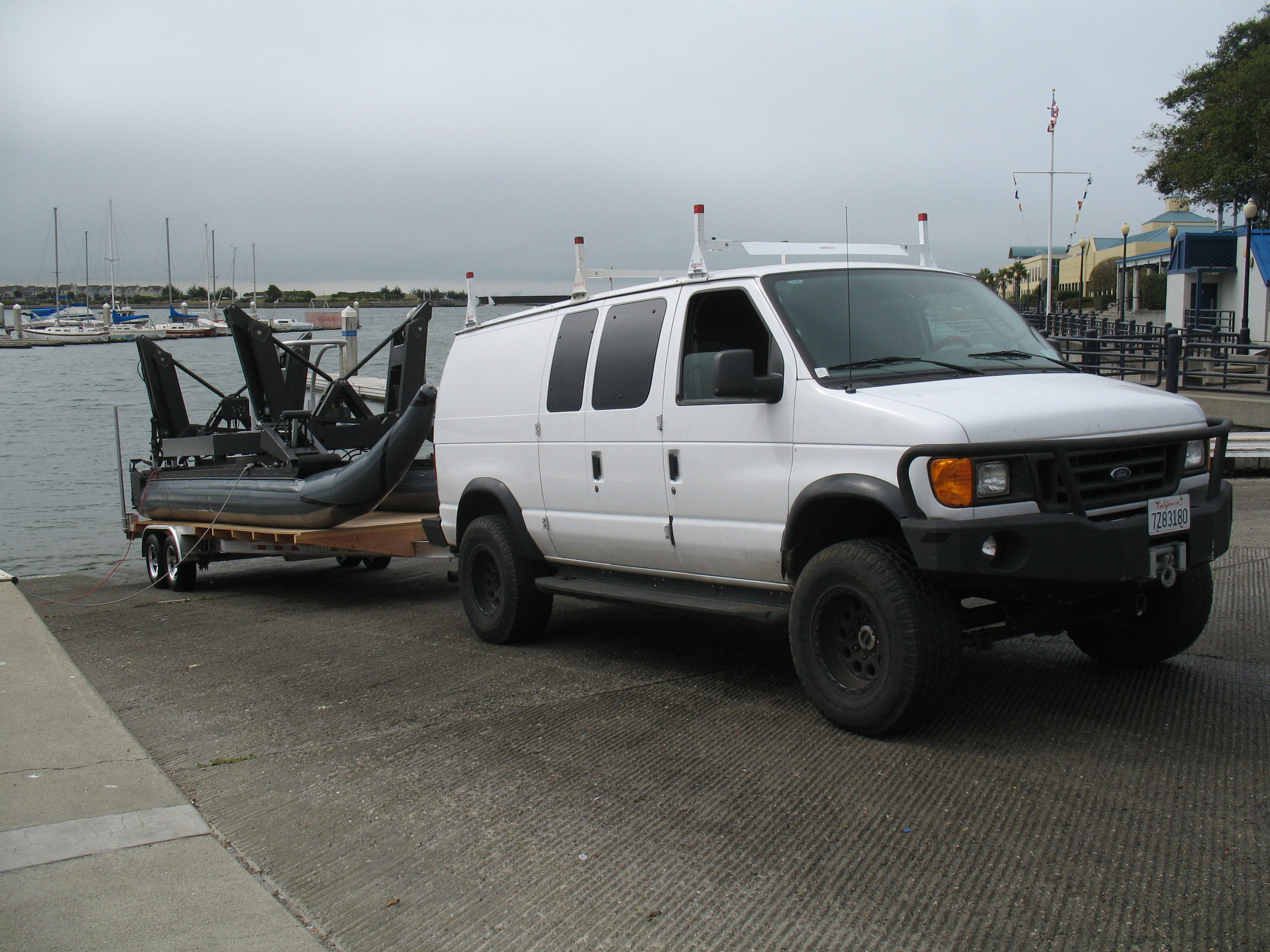

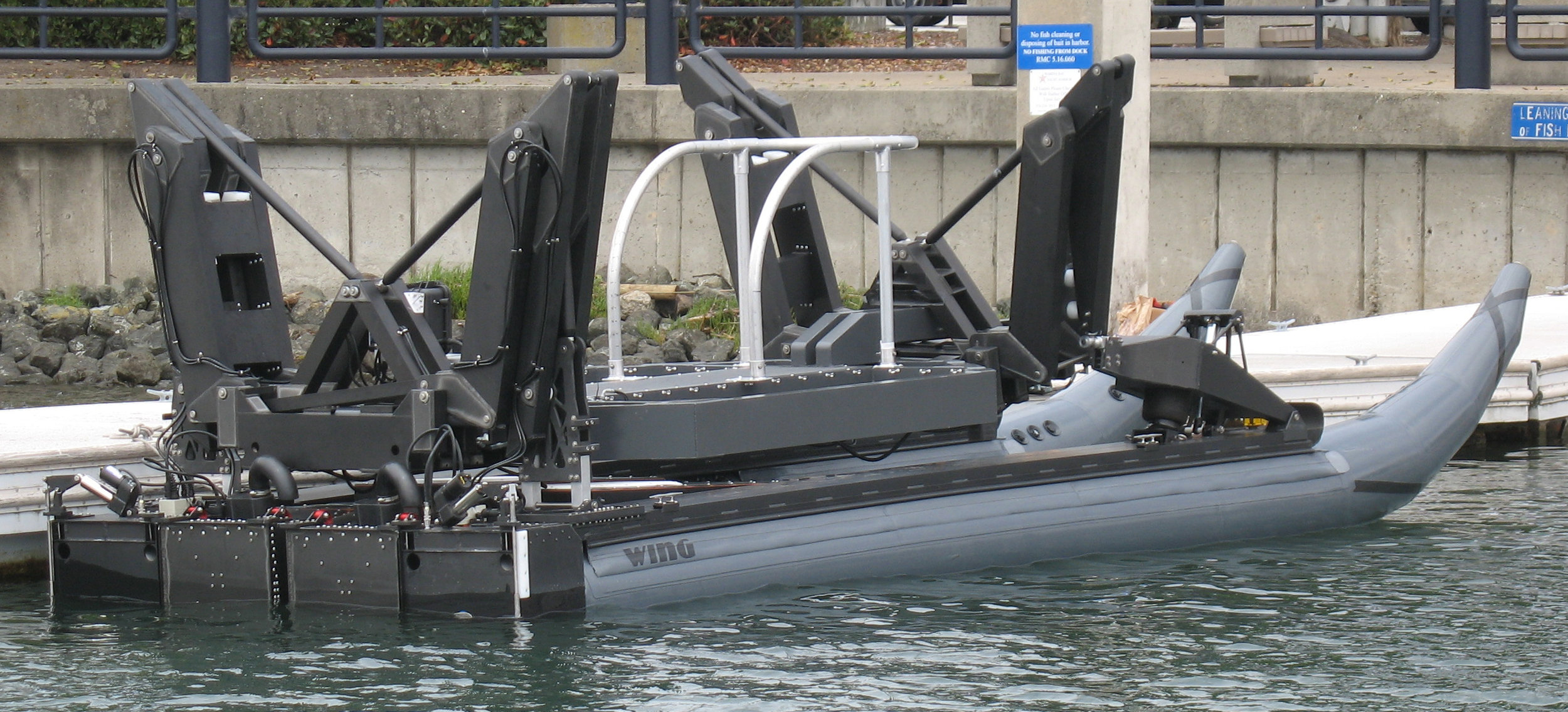

The WAM-V 33 USV was developed in 2010, under a NAVSEA contract. It is designed to hydraulically, electrically, or manually fold – reducing its footprint by 75%. The vessel can be easily deployed from shore by a standard trailer or from the deck or ramp of a ship. While in the water, the WAM-V 33 USV can go from its folded position to its fully deployed configuration, or vice versa, in less than 2 minutes with the push of a button.

WAM-V 33 USV Specs

Length: 33 ft (10 m)
Beam: 16.5 ft (5 m)
Max Draft: 9 in (23 cm)
Max Speed: 21 knots
Max Range: 250 nautical miles

Full Service Customization

The WAM-V technology is scalable and we have a track record of scaling the design to meet our customer’s needs. WAM-Vs have been built in sizes ranging from 8 ft (2.5 m) to 100 ft (30 m) with a design for a 130 ft (40 m) variant for carrying a 50 ton payload. If one of our current models does not meet your requirements, please reach out to us and we would be happy to modify any of our bespoke solutions or design a new WAM-V variant that fits your requirements.
