Stability

Superior Performance

WAM-V 16 ASV provides best in class stability where it counts. Head out with the confidence you need to get the job done.


Portability

Simplified Logistics

WAM-V 16 ASV has Best in Class portability: transport by trailer or ship by standard air freight; launch from the deck of a larger vessel or assemble and launch from shore.


Versatility

Multi-domain Autonomous Marine Platform

WAM-V 16 ASV provides Best in Class versatility. Able to launch and recover aerial and subsurface unmanned and autonomous systems from the stabilized central payload area. Increases the number of applications/missions from a single autonomous surface vessel.


Maneuverability

Improve Efficiency

The WAM-V 16 ASV is the most maneuverable Autonomous Surface Vessel available. Able to turn 360 degrees in its own length, the WAM-V 16 ASV makes quick speed and course corrections allowing it to have the best on track performance on the market.


WAM-V 16 ASV SPECIFICATIONS

Length: 16 ft (5 m)

Beam: 8 ft (2.5 m)

Max Draft: 20 in (0.5 m)

Weight: 450 lbs (204 kg) lightship

Batteries: Up to 6x 2,685 Wh Li-Ion

Endurance: 15 hrs @ 5 kn; 30 hrs @ 3 kn

Max Speed: 11 kn

Propulsion: 2 x 2kW electric

Payload:
• 2 battery configuration: 350 lbs (159 kg)
• 4 battery configuration: 250 lbs (113 kg)
• 6 battery configuration: 150 lbs (68 kg)


WAM-V 16 COMMAND AND CONTROL

Screenshot of OCU Display.JPG

Control and communication software: MARCODE™

Graphical User Interface (GUI) for:
• Autonomous waypoint navigation
• Manual control
• Real-time vessel & sensor data display

FrSky_Taranis_X_Lite_White Background.jpg

Mobile Operator Control Unit (MOCU™)

• Handheld, mobile, steering and speed controller.
• Allows control of WAM-V Unmanned Surface Vehicle (USV) independent of command station.
• Serves as an emergency back-up when used with command station.


Remotely Operated Command Station (ROCS™)

Portable, self-contained, remote operation command station. Includes:
• PCS
• Integrated handheld wireless controller
• RF module
• Batteries

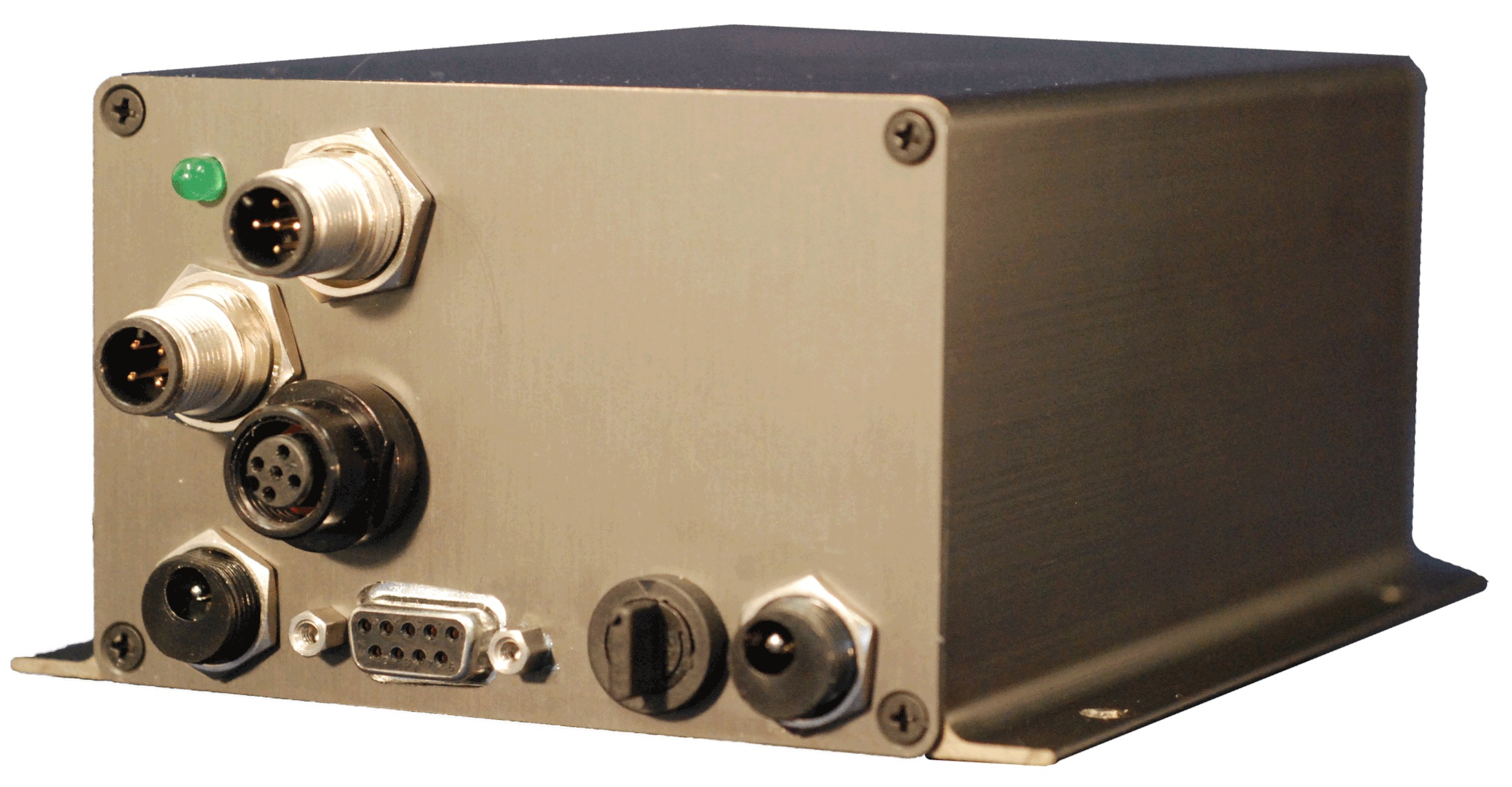

Propulsion Control Unit (PCU)

• Two channel interface to propulsion
• Battery back up reset
• RS232 interface.


Integrated Onboard Control System: ROBO-HELM™

Computer navigation and control system containing:
• GPS and INS
• Digital navigation
• Real-time vessel and sensor data
• RF module
